The big shiny spring-loaded lever group is the most prominent part of the Spiritello. This classic technical marvel, praised for its thorough pre-infusion and diminishing extraction pressure, is now enhanced with the latest modern-day improvements. This ensures a virtual ideal extraction, so brewing a tasteful espresso comes naturally.
Plug & Play
Starting up the Spiritello only requires plugging in and filling up the reservoir. It comes with a built-in 3.5 litres stainless steel water reservoir and an internal quiet rotary pump. The drip tray is easily removed by sliding it forward and up. Naturally all parts to connect it directly to water mains and/or drainage are included as well. To give you the convenience of choice.
Zappo Steam Wand
The Zappo type steam wand consists of a double walled stainless tube, with a PEEK steam tip, four holes of 1.2mm each. These insulated steam wands are generally appreciated for their “non-burn” qualities, but their ability to have milk hardly or not adhere is a possibly even greater benefit.
Display
The large round display at the front of the Spiritello, measures 53mm/2 inch and features a push/turn knob to its side. The barista can tune the machine exactly to their wishes. Eco mode and a host of handy features are readily accessible. A shot-timer automatically appears in full view on the display, whenever the lever is pulled.
Double Boilers System
Spiritello offers a dual boiler system. Both boilers are made in stainless steel 316L, which is more resistant against aggressive water than stainless steel 304 and has a long life expectancy in an espresso machine. Each can be switched on or off separately. Filter holders are in stainless too.
Both boilers can be easily drained through a ball valve. The coffee boiler`s drain is connected to the drain tray. A fitting with hose is supplied to drain the steam boiler.
Large steam boiler with total volume of 3.5ltr. Together with two 900Watt heating spirals controlled by a PID system, this ensures powerful and long lasting steam. Hot water is mixed with some cold, to deliver a non-spattering flow from the spout, at the touch of a button. The final temperature can be easily adjusted with a screw driver, reaching a jet through a hole in the body work. The hot water quantity can be adjusted through the display.
The steam valve has a turning knob, but can be ordered with a small toggle type lever as well. The wand is in double walled stainless, finished by a PEEK tip. No milk will burn on.
The coffee boiler, complete with the group, is one large piece, holding 0.8ltr. with a 450Watt heating element, controlled by a PID system. This saturated set-up ensures a highly precise temperature. Cold water first runs through a heat-exchanger with hot-cold cross-flow system, to be pre-heated to near coffee boiler temperature, before entering the coffee boiler.
All welding is done inside and outside, no crevices to start corrosion.
Configure the Spiritello to suit your needs

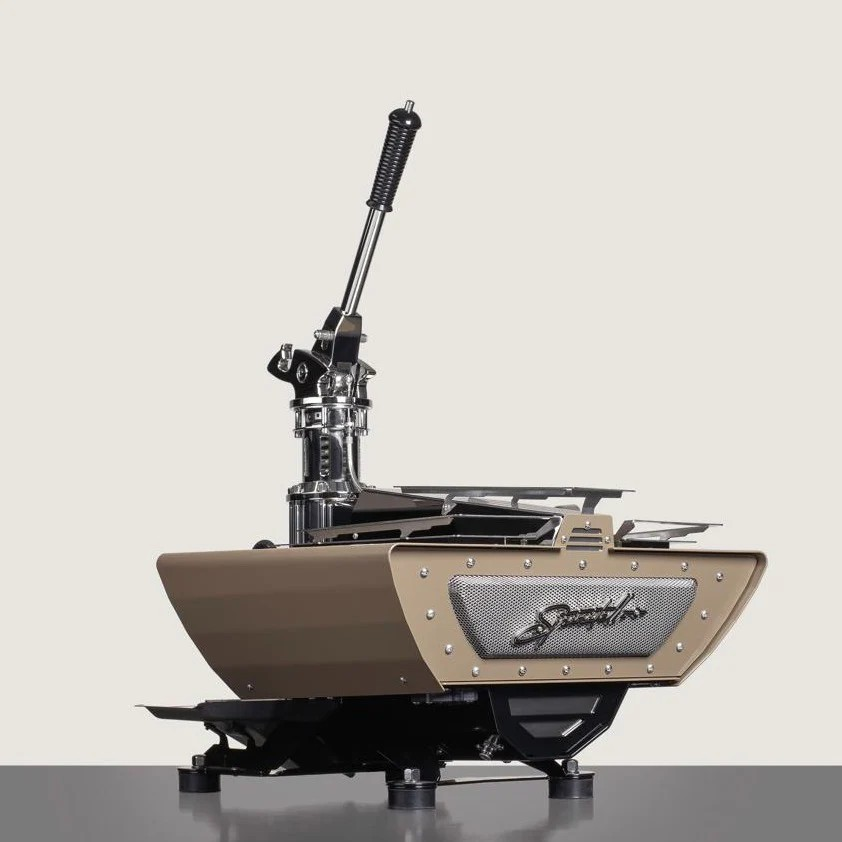

Make your machine fit or contrast its surrounding by adding some colour to the mix. On all our machines we offer the option to have the entire body covered in a RAL colour of your liking. The colour is applied by powder coating, offering a long lasting, sturdy finish.
Please note, these photos show examples of tailor made espresso machines. When we handcraft your custom machine, details may vary – and of course you can also make your own choices. Where possible, we will build your own customised machine as you have envisioned it.
Your personal machine to pull espresso the easy way!
Handcrafted in the Netherlands
At Kees van der Westen, we quietly craft exceptional espresso machines for those who appreciate the art and science of making great coffee.
We spare no details when it comes to designing and engineering our machines. Down to the smallest parts we design for delight. Meaning we aim to bring joy to everyone involved in our espresso journey. From the knowledgeable distributor to the passionate barista and from the handy maintenance technician to the people standing in line ordering their coffee treat.
